Pyranometer SMP3

Fastest and best performing ISO 9060 Second Class pyranometer. Smart Pyranometer SMP3 is perfect for monitoring solar energy installations, agriculture, horticulture, hydrological and industrial applications.

  • General
  • Technical data
  • Documents
  • Video
  • Images

The SMP3 is a smart pyranometer with low maintenance and industry standard digital and analogue amplified outputs. Based on the proven CMP 3 technology the SMP3 adds Modbus® interface, improved response time and temperature corrected measurement data. The wide and low power supply range from 5 to 30 VDC makes integration in meteorological stations easy. The SMP is protected against over voltage, reversed polarity and short circuiting. Because all SMP’s have identical sensitivity and connections exchanging instruments during recalibration is easy.

PC Software for data logging, display of data and Modbus® address setting is standard provided.

SMP3 measures global solar radiation on a horizontal plane. When tilted with the same angle as a PV panel it measures the tilted global radiation, for PV module efficiency calculations.

Spectral range 300 to 2800 nm
Response time (63%) < 1.5 s
Response time (95%) < 12 s
Zero offset A < 15 W/m²
Zero offset B < 5 W/m²
Directional error (up to 80° with 1000 W/m² beam) 20 W/m²
Temperature dependence of sensitivity (-20 ºC to +50 ºC) < 3 %
Analogue output (-V version) 0 to 1 V
Analogue output (-A version) 4 to 20 mA
Digital output 2-wire RS-485



TitleDescriptionFilename
Manual - Pyranometer SMP3  KippZonen_Manual_Smart_Pyranometers-0.pdf
Brochure - pyranometer SMP3  KippZonen_Brochure_Smart_Pyranometers_A4_V1201-0.pdf

Product has no videos.

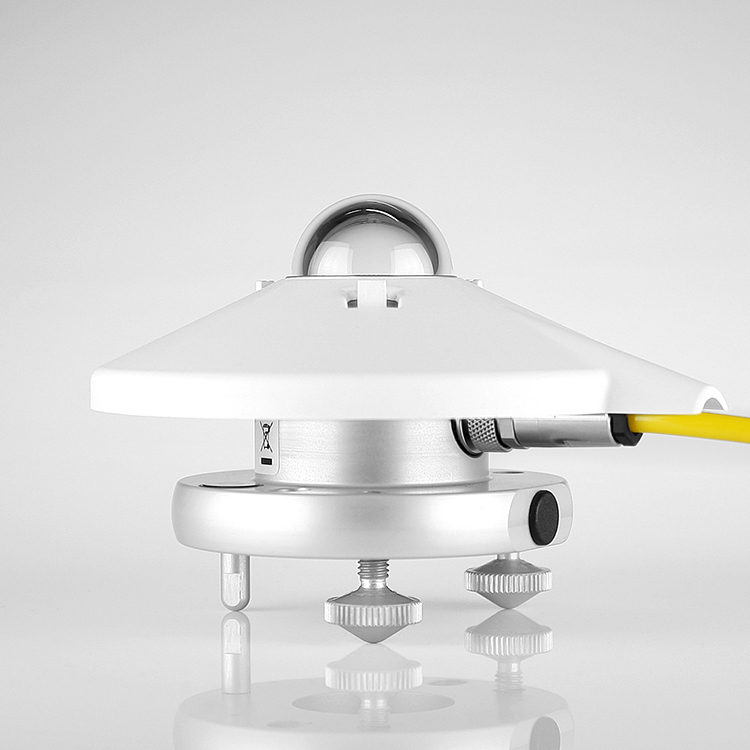

Pyranometer SMP3

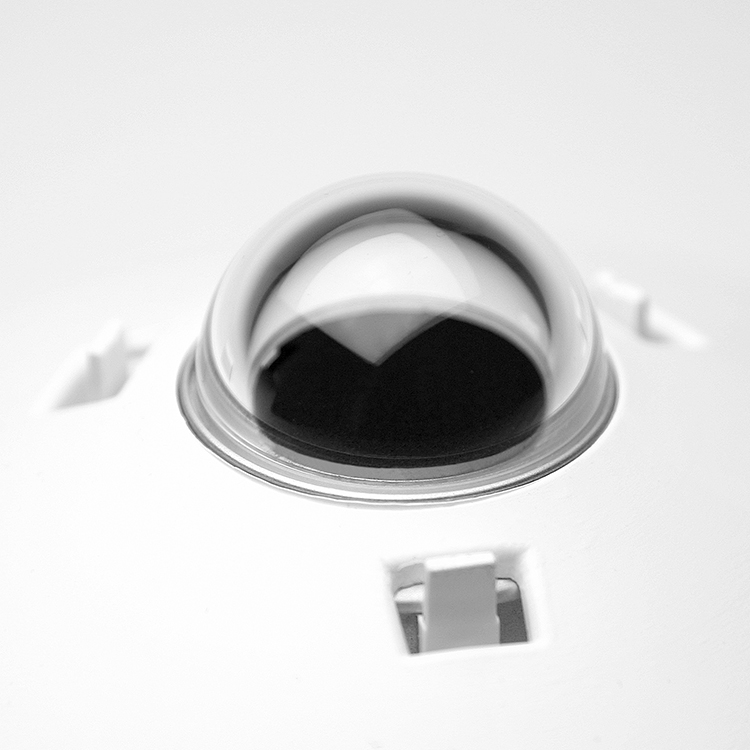

Pyranometer SMP3

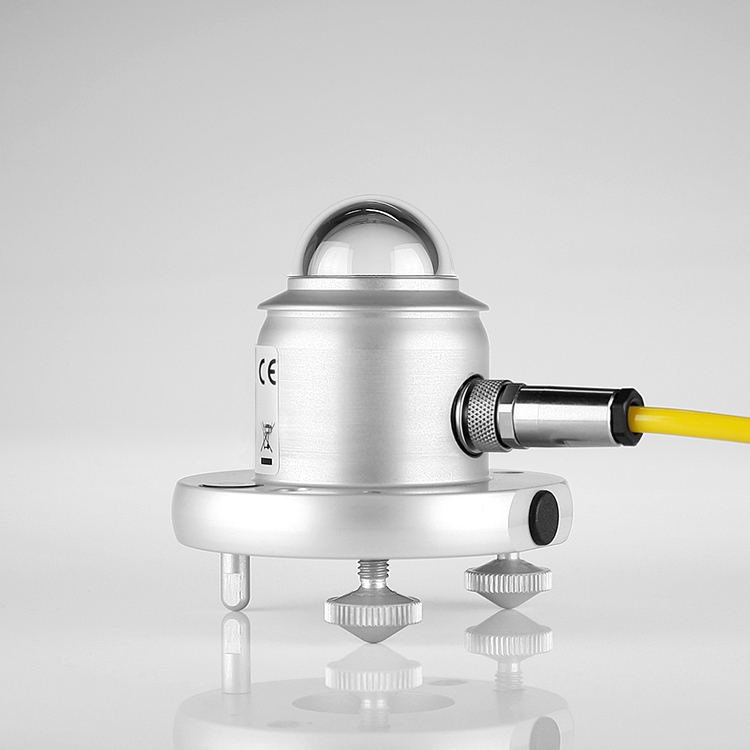

Pyranometer SMP3

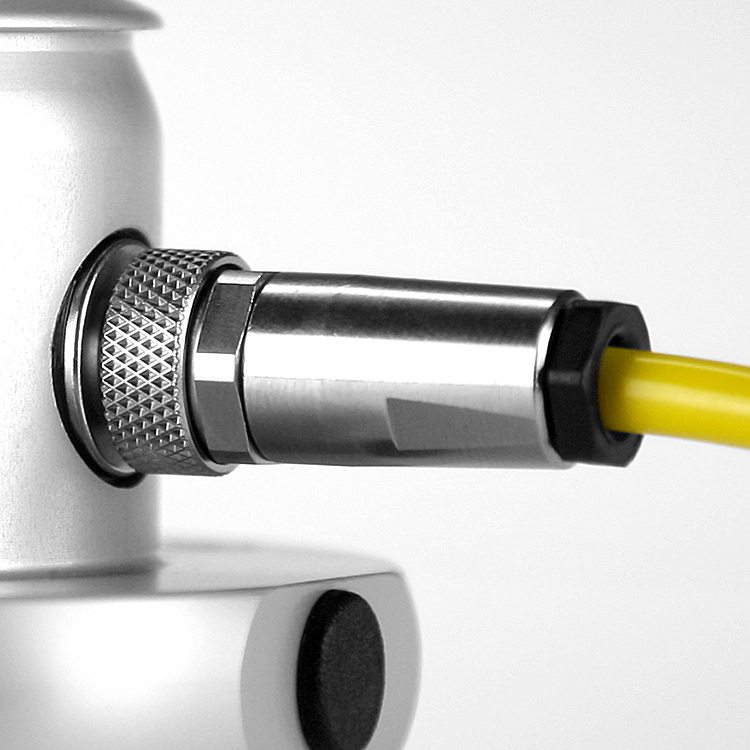

Pyranometer SMP3

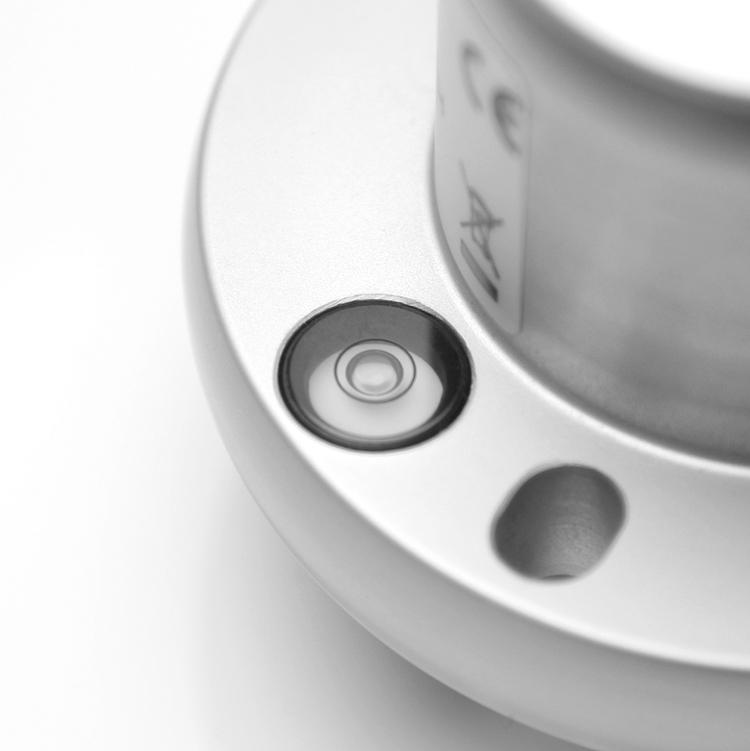

Pyranometer SMP3
