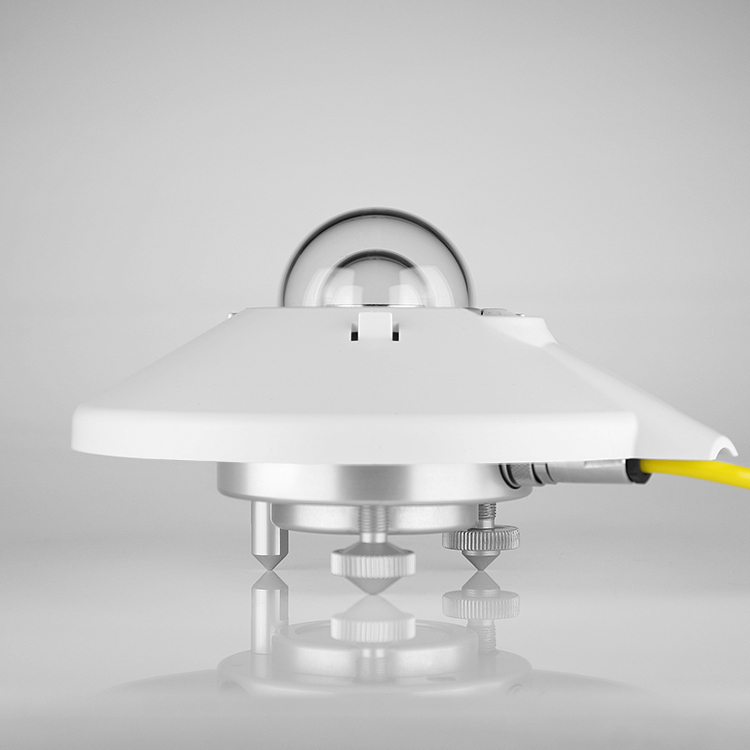

Pyranometer CMP10

Secondary standard pyranometer with minimized maintenance thanks to its internal desiccant, designed for meteorological networks and solar energy applications.

  • General
  • Technical data
  • Documents
  • Video
  • Images

CMP10 is the secondary standard pyranometer with the best price-quality-performance ratio on the market. Based on the established CMP 11 technology, CMP10 extends this quality to applications where maintenance is difficult and/or forms a major part of the cost of ownership.

The CMP10 has an internal drying cartridge that will last for at least 10 years if the housing is not opened. This minimizes maintenance significantly.

The interval for dome cleaning can be extended, and the quality of measurements maximized, by fitting CMP10 with the recently launched CVF4 ventilation unit.

Kipp & Zonen provides every CMP10 with a 5-year warranty as standard. This warranty applies provided that the CMP10 is used only under atmospheric conditions, that the housing is not opened and that the Kipp & Zonen cable and connector is correctly fitted.

Spectral range 285 to 2800 nm
Sensitivity 7 to 14 µV/W/m²
Response time < 5 s
Zero offset A < 7 W/m²
Zero offset B < 2 W/m²
Directional error (up to 80° with 1000 W/m² beam) < 10 W/m²
Temperature dependence of sensitivity (-10 ºC to +40 ºC) < 1 %
Operational temperature range -40 °C to +80 °C
Maximum solar irradiance 4000 W/m²
Field of view 180 °



TitleDescriptionFilename
Manual - Pyranometer CMP10  KippZonen_Manual_CMP_CMA_series_Pyranometers_Albedometers-1.pdf
Brochure - pyranometer CMP10  KippZonen_Brochure_Pyranometers-0.pdf
