Rain gauge MR2

Simple non-heated rain gauge with tipping bucket - intended for liquid precipitation measurement only.  With pulse per 0.2mm/m2 output.

  • General
  • Technical data
  • Documents
  • Video
  • Images

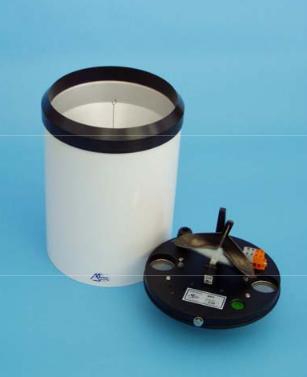

MR2 is used to measure quantity of precipitation. Inside there is a tipping bucket with the 10ml containers. When the first container is full it turns over and the other starts to fill. When turn occurs, it breaks the light beam of an optoelectric transducer and generates an electric pulse. In model MR2H there is a heater built in, to prevent freezing. Temperature at which heater turns on is adjustable and is regulated by a thermostat. Output signal is in pulses. On the upper side of MR2 there is a protection ring that prevents birds to carry dirt into the sensor. On the bottom side there is mounting element to fix sensor to the supporting rod.

MR2 is a product of Meteoservis, which is represented in Slovenia by AMES. For other Meteoservis ombrometers please visit their Internet site www.meteoservis.cz.





Measuring area: 200cm2,
Output: pulses
Resolution: 0.2 mm (10ml)
Operating temperature range: +2 °C to +60 °C
Dimensions: 245 mm by 179 mm
Weight: 1.9 kg
