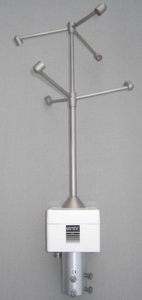

Anemometer - uSonic-3 Scientific

Accurate and reliable 3D wind and turbulence sensor,

3 wind components x, y, z and acoustic temperature T,

Robust stainless steel construction (V4A),

High accuracy due to 3D wind tunnel calibration.



  • General
  • Technical data
  • Documents
  • Video
  • Images
The Ultrasonic Anemometer uSonic-3 Scientific is a 3D wind and turbulence sensor which has proven reliable operation in all weather types, outstanding flexibility, high rated system performance and user friendly
operation in widespread applications.

 It delivers raw or mean values of wind components x, y, z including acoustic temperature by serial interface RS422 / RS485 or as analogue output.
Ambient conditions - 40 … + 60 °C, 5 … 100 %
Average time / number 1 … 3600 s / 1 ... 65365 samples
Sampling rate 0.1… 30/50 Hz
Measurement ranges 0 … 60 m/s, - 40 … + 70 °C
Accuracy wind speed / wind direction
 0.1 m/s or 2 % / 2° @ 5 m/s
Resolution 0.01 m/s, 0.1°,0.01 K
Output data set  x, y, z, T / vel, dir, z, T
Averaging method  scalar, vectorial
Output protocols standard, checksum, NMEA
Data output
async, polling, time synchronized
Turbulence module (option) online calculation
Internal memory 15300 standard / 2600 data sets turbulence calc.
Power supply
9 ... 36 VDC / 3 W (5 W with options)
Sensor head heating (option) 24 VDC / 55 W / 100 W
Analogue input (option) 2 x PT100, 6 x analog 16 bit, 2 x counter
Analogue output 4 x 0-5V/±5V, 0-10V, ±10V, 0-2,5V, ± 2,5V
Serial interface
RS422, RS485 (300 … 115200), ASCII



TitleDescriptionFilename
uSonic-3 Scientific Brochure  Metek_Ultrasonic_Anemometer_uSonic_3_Scientific_USA_1_Datasheet.pdf
